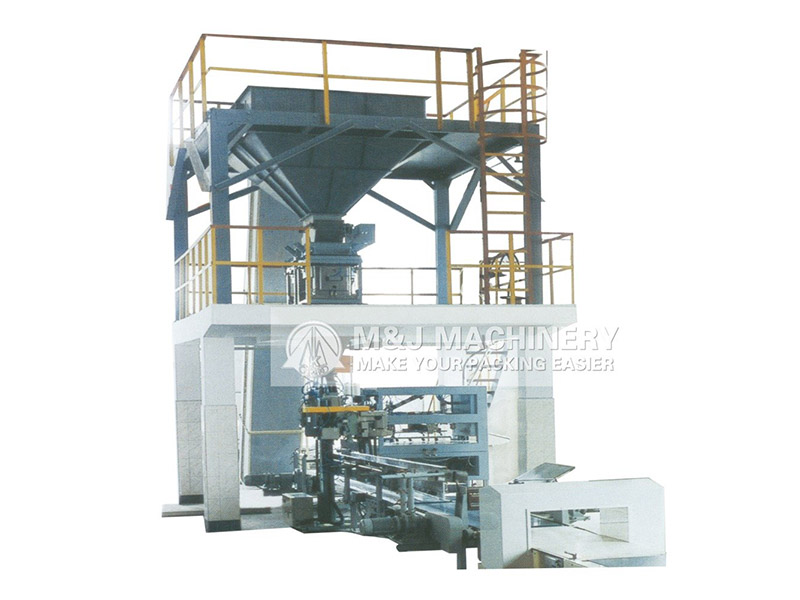

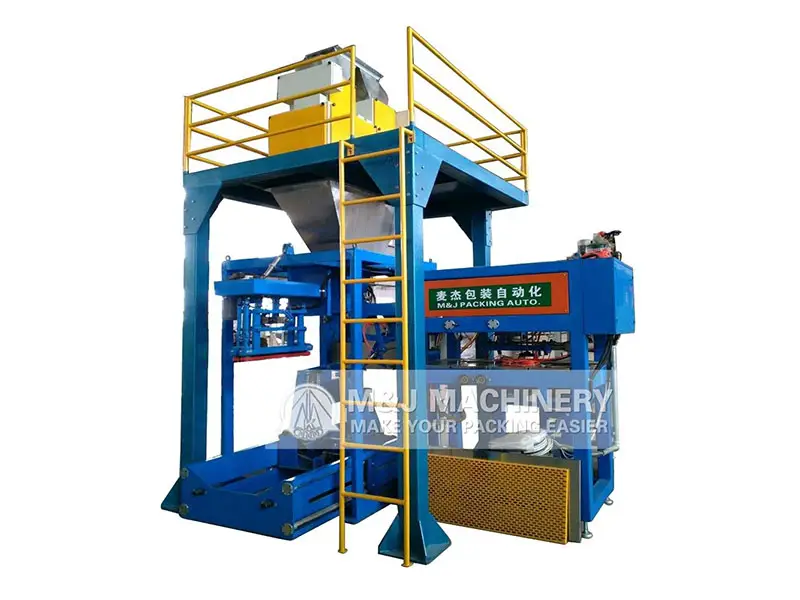

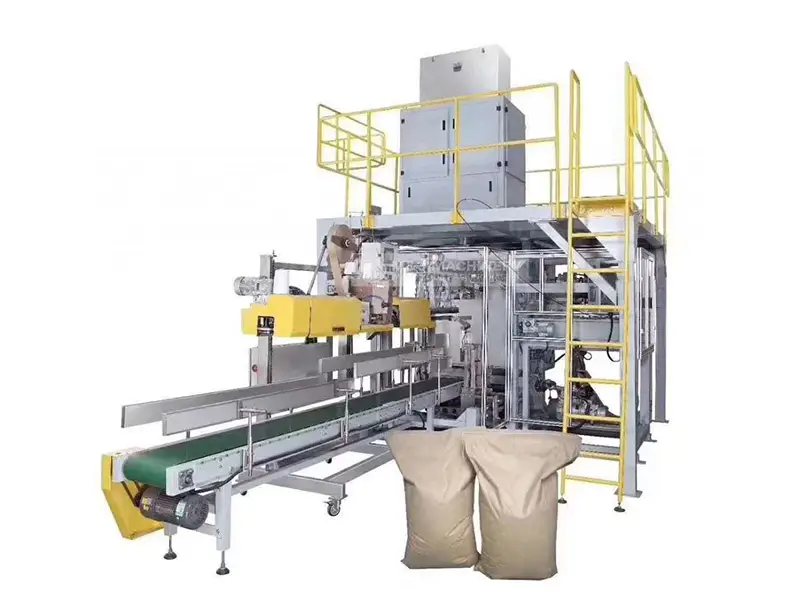

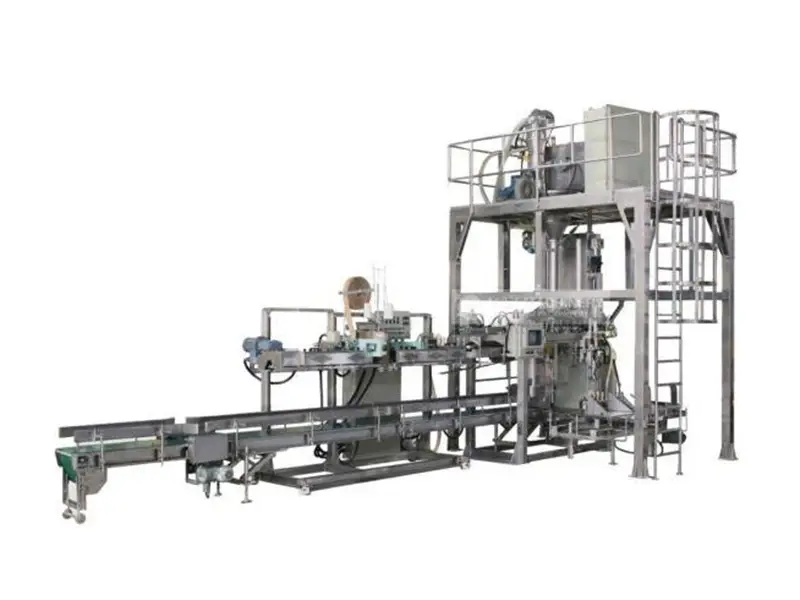

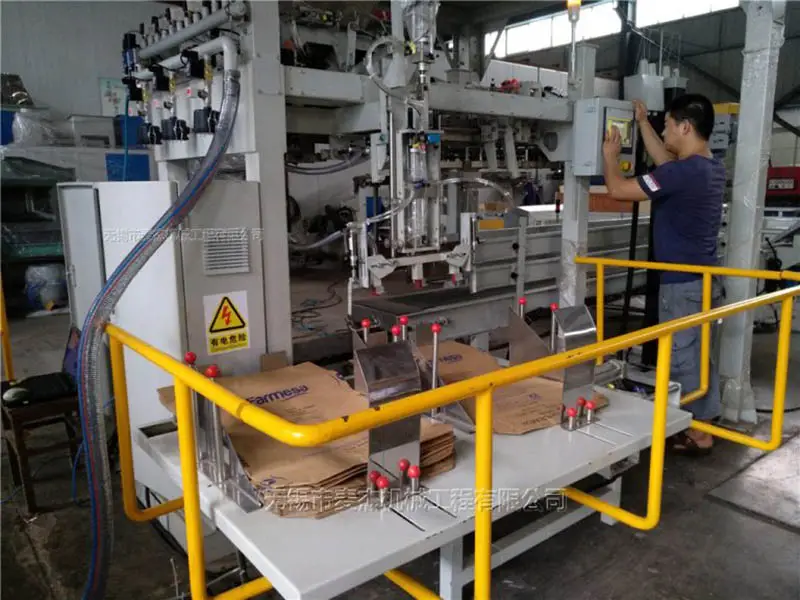

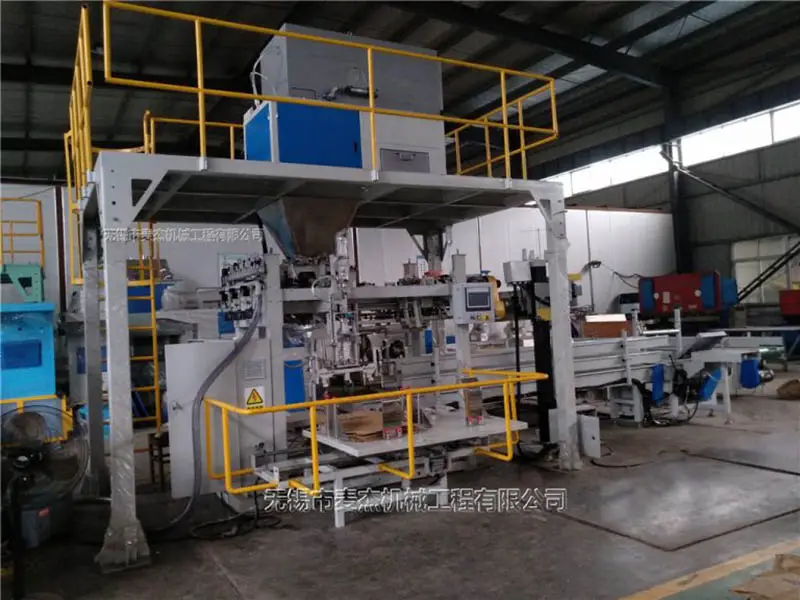

Completely automatic bagging machine for open port bags

Full automatic packing machine, capacity600bags/hour

Model: MZDP

Applications

It is applicable for completely automatic packing in industries such as chemistry, fertilizer, grain, food, feed, medicine, construction materials, etc.

Major Components

● Automatic quantitative weighingdevice

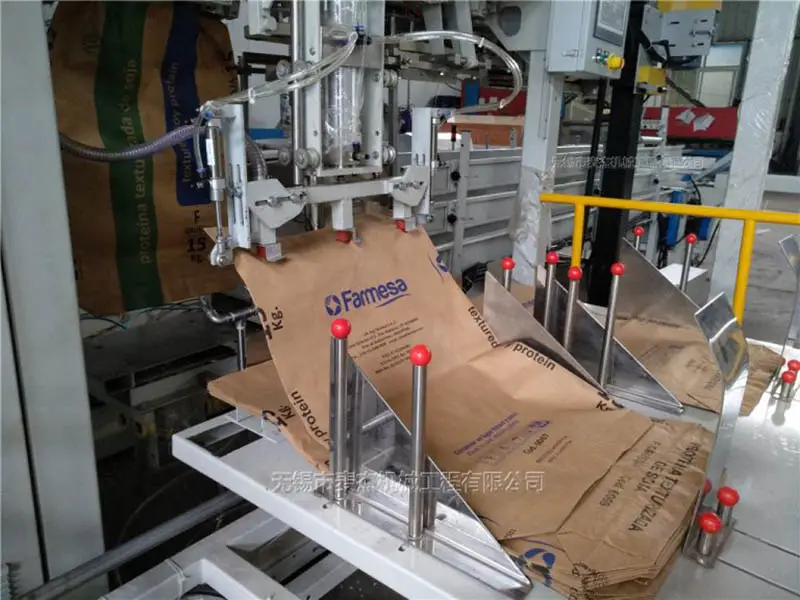

● Automatic bag-supplier

● Automatic bag port reshape clipper

● Automatic belt conveyor

● Automatic sewing/sealing/fold sewing/glum sealingmachine

● Automatic bag-backwards section

● Electrical control cabinet

● Options

Main Technical Parameters

MODEL		MZDP-1
PACKING CAPACITY		600-1000 bags/hour
FILL MODE		1-2 time/1 bag filled (Customized)
PACKING MATERIALS		Granule/Flakes/Powders/Lumps/Pellet
BAG TYPE		Kraft Paper bags
		PP Woven bags
		Plastic bags (thickness 0.2mm)
BAG SIZE	LONG (mm)	750-950(Customized)
	WIDTH (mm)	400-520(Customized)
	BOTTOM WIDTH (mm)	0-75(Customized)
MATERIAL FILLING DEVICE		Net weighing. Double type. Dosing system
ACCURACY		±0.2% (It changes with physical properties of materials and its capacities)
Total weight		25000
Power		≈8 kw
Air consumption		0.7m3/min
